Description
- Hign-concerned Chemical: None
- RAID Supported: no
- Processor compatibility: Intel Xeon Scalable,Intel Core
- Ports: M.2
- Usage Scenario: Gaming,Audio & Video,Office,others
- Special Function: none
- Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),AAFP Connector
- Back I/O Ports: 1x RJ45,PS/2 Combo
- Support USB Type: USB 2.0,USB 3.0
- Onboard LAN: 1x RJ45
- Audio Channels: 5.1
- SATA RAID: 0
- Supports M.2 SSD: 2280
- Number of M.2: 3
- Number of SATA Ports: 6
- Storage Interface Type: SATA,M.2 (NVMe)
- Number of PCI: 0
- Number of PCIe x 1: 1
- Number of PCIe x 4: 0
- Number of PCIe x 8: 0
- Number of PCIe x 16: 2
- PCI – E standards: PCI – E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR4
- Quality Certification: ce,ROHS
- Memory channel: Four
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Form Factor: ATX
- Chipset Manufacturer: Intel
- With CPU: Yes
- Chipset: Q87
- Application: Desktop,Laptop
- Socket Type: LGA 2011-3
- Brand Name: MACHINIST
- MACHINIST Model: X99 MR9A PRO MAX
- Origin: Mainland China
- Certification: RoHS,CE
Package contains:
Motherboard: MACHINIST E5 MR9A PRO MAX LGA2011-3 motherboard *1.
Processor: Intel Xeon E5 2680 V4 *1.
RAM: DDR4 8GB 2133MHz desktop memory *2 (silver cooling vest).
Free accessories: I/O shield *1, SATA cable *1, lga 2011 cooling bracket *1.
Motherboard information:
>>Brand:MACHINIST.

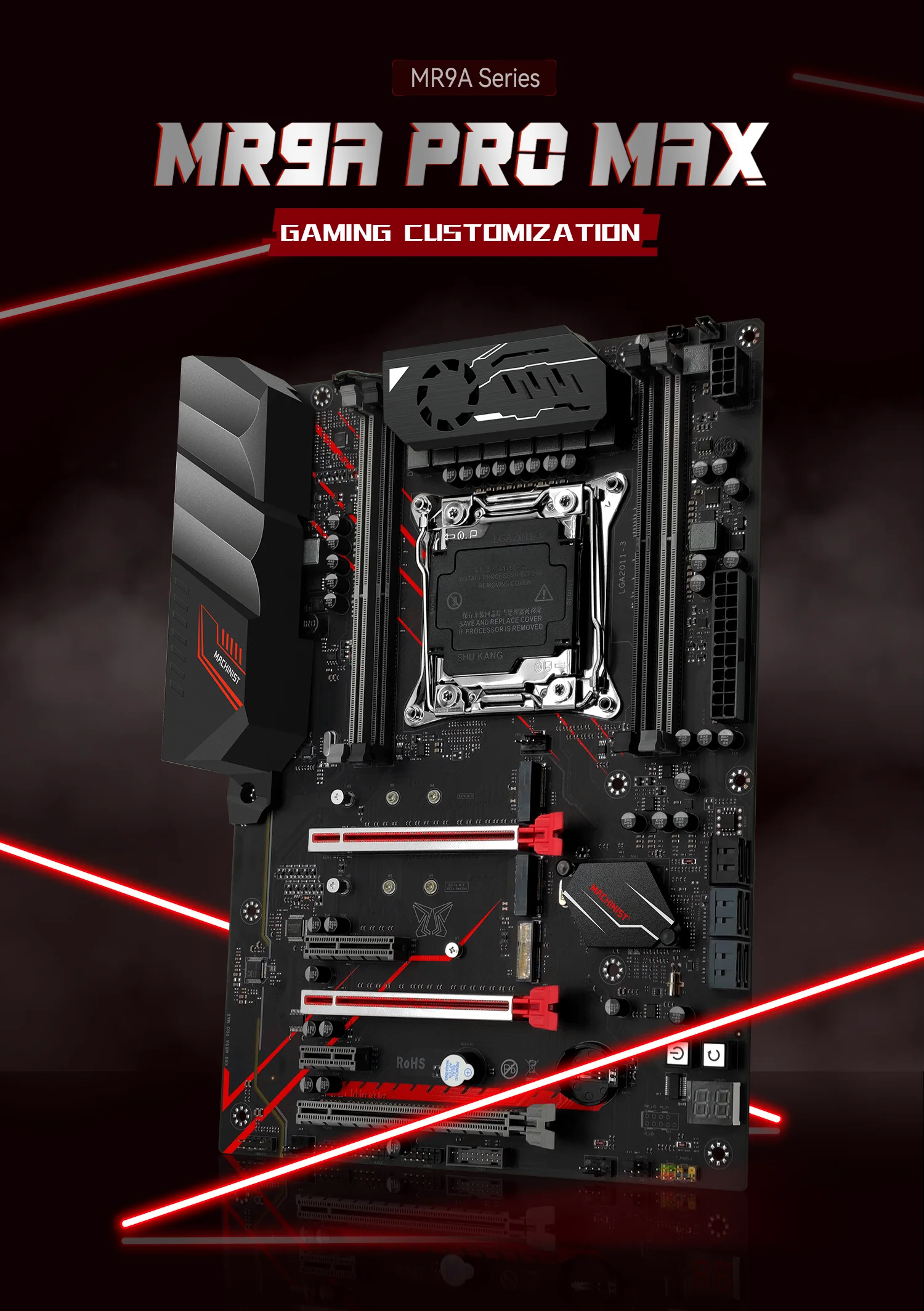

>>Motherboard model: X99 MR9A PRO MAX.
>>Processor: Support LGA 2011-3 series,
>> Chipset: Q87/Z87/B85 chipset.
>>Memory
Technology: Dual Channel DDR4. Support 2133/2400/2666/3000/3200 MHZ.
Maximum capacity 128GB (32G x 4).
Memory slot: 4*288 PIN DDR4.
Memory channel: four channels.
(Note: Please use international brands such as Samsung, Kingston, SanDisk, and Micron. Other brands may be incompatible.)

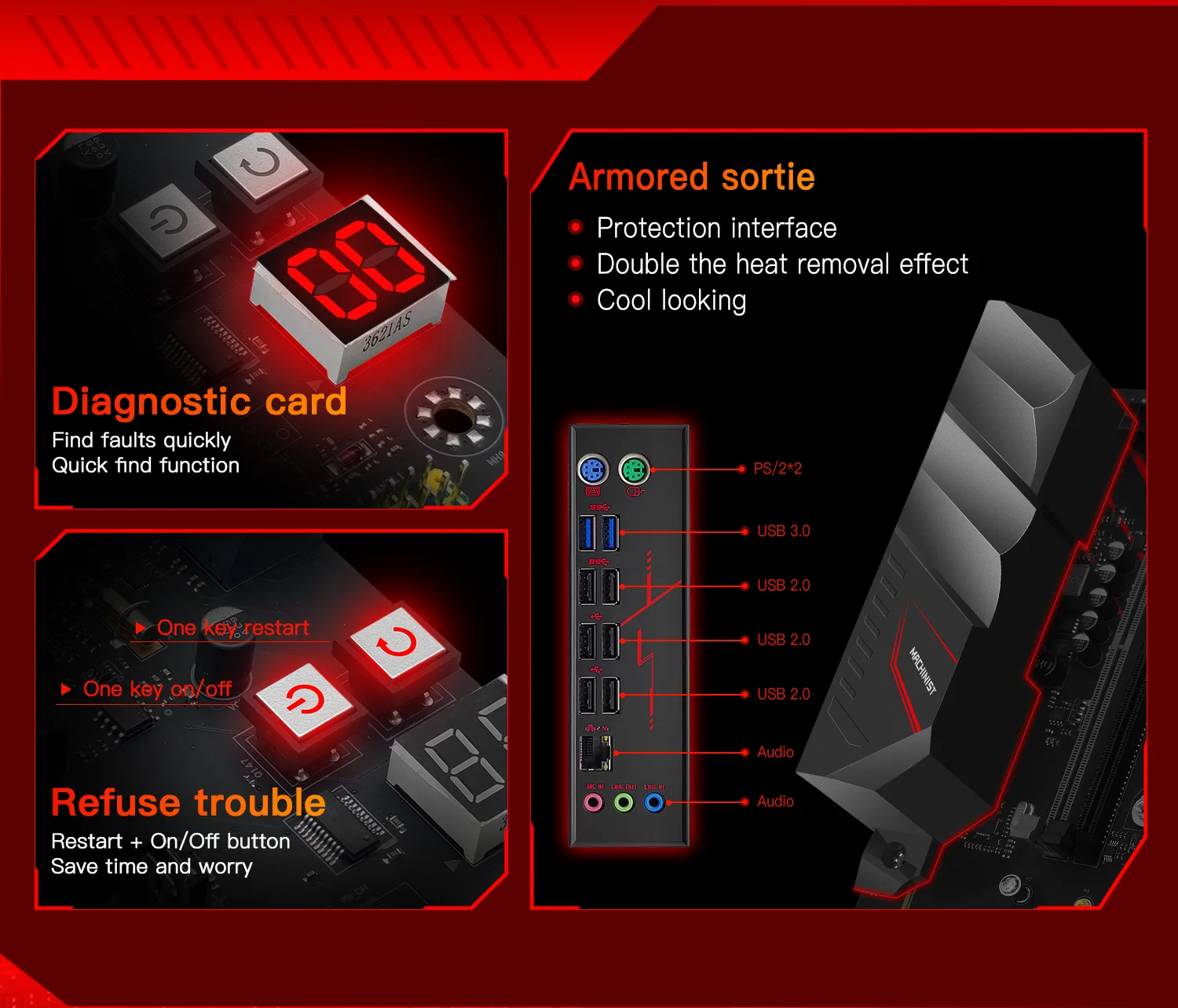

>> Post I/O
PS/2: 1 KB interface + 1 MS interface.
USB interface: 6 USB2.0; 2 USB3.0.
Ethernet: 1 Gigabit network card.
Audio: 1 (Mic-in, Line-out, Line-in).
>>Internal connector
COM Port: 1 pin 2x5Pin.
SATA interface: 4 (SATA3.0), 2 (SATA2.0).
M.2: 2 NVME interfaces.
Wireless Network: 1 nillkin WiFi M.2.

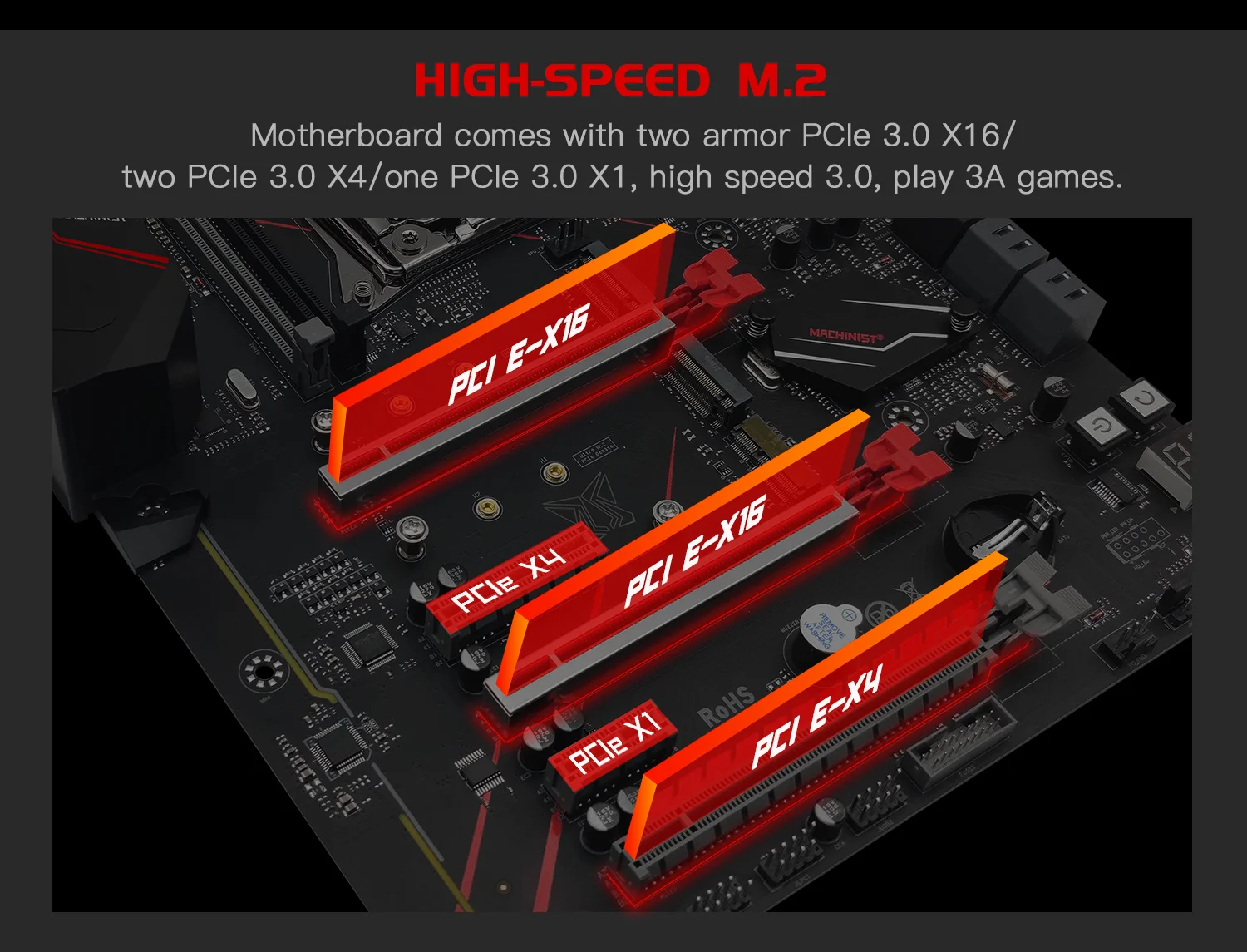

PCIe: 3 PCIe 16X, 1 PCIe 4x, 1 PCIe 1x.
F_PANEL: 1 2x5Pin.
Diagnostic card: 1 pc.
Overall dimensions: 305mm *215mm.
Processor information:
Model: E5 2680 V4
Manufacturing process: 14nm
Number of cores: 14
Number of threads: 28
CPU frequency: 2.4GHz
TDP: 120W
Notice:
>>All products are packaged after manual testing before sending. If there are any gifts missing, please understand!
>> Regarding customs issues, please ensure that you can solve the customs clearance problem by yourself. If you cannot solve it, we do not recommend that you purchase goods in our store. We are not responsible for customs duties. thank you for understanding.
Notice:
(1) The color of the tank bottom plate may vary from batch to batch, but it will not affect the use of the product. Products are continuously optimized and upgraded.
(2) Due to manual measurement, please allow an error of 1-3mm.
(3)Due to different displays and different lights, the pictures may not show the actual color of the item. thank you for understanding.
(4) The platform requires a powerful power supply. Please make sure your power supply is sufficient for this platform. (At least 500w brand power supply)
(5) The battery in the motherboard photo is not included and will be removed before shipment because logistics requirements prohibit the use of this battery.
